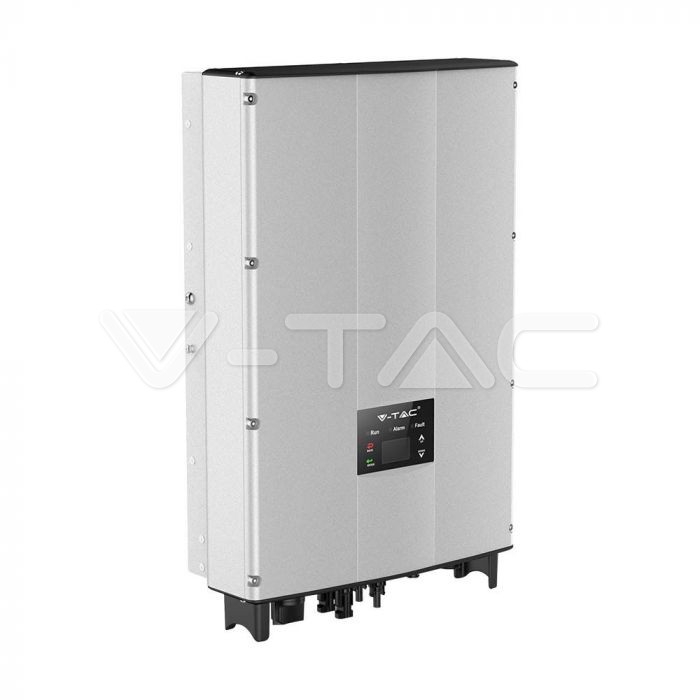

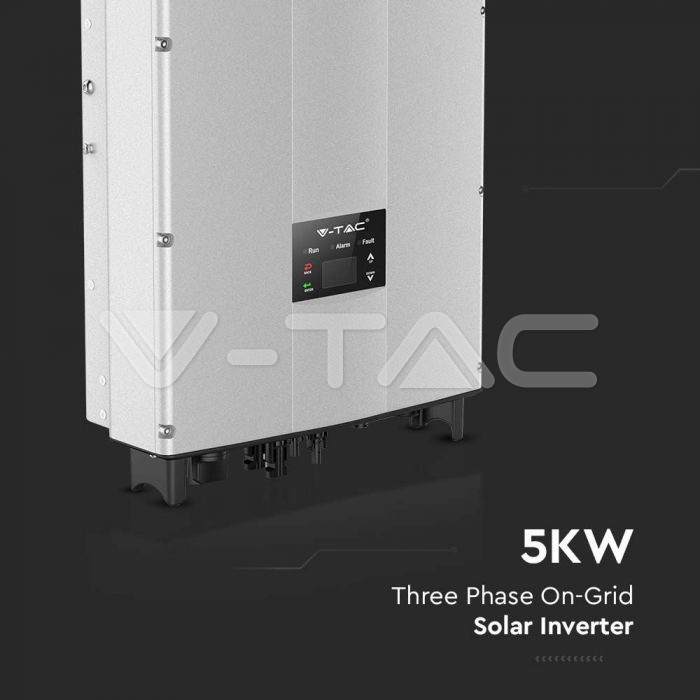

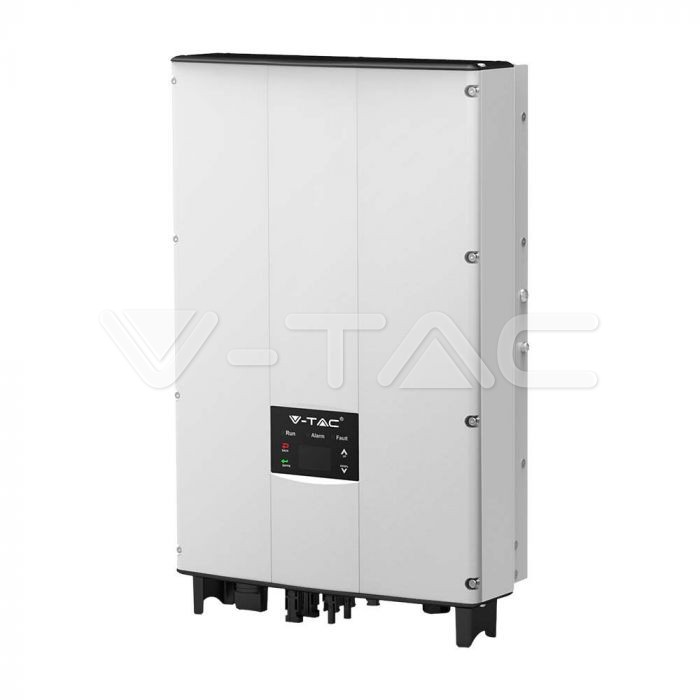

5KW On-Grid Solar Inverter LCD Display DC Switch Three Phase 5 yrs Warranty IP65

SKU: 11371 Categories: , ,

Additional information

Series:

Wattage:

<ul><li>Max. Input Power: 5700W;</li>
<li>Rated AC Power: 5000W;</li></ul>
Voltage:

<ul><li>Max. Input (DC): 900V;</li>
<li>Start Voltage/Min. Operating (DC): 220/180V;</li>
<li>MPPT Range (DC): 200-800/580V;</li>
<li>Nominal output voltage (AC): 230/400V;220/380V, 3L+N+PE/3L+PE</li></ul>
Current:

<ul><li>Max. DC Current per MPPT x Quantity of MPPT: 10×2</li>
<li>Max. Output Current: 8A</li></ul>
Frequency:

50Hz / 60Hz
Power Factor:

≥0.99 (Rated Power)
IP Rating:

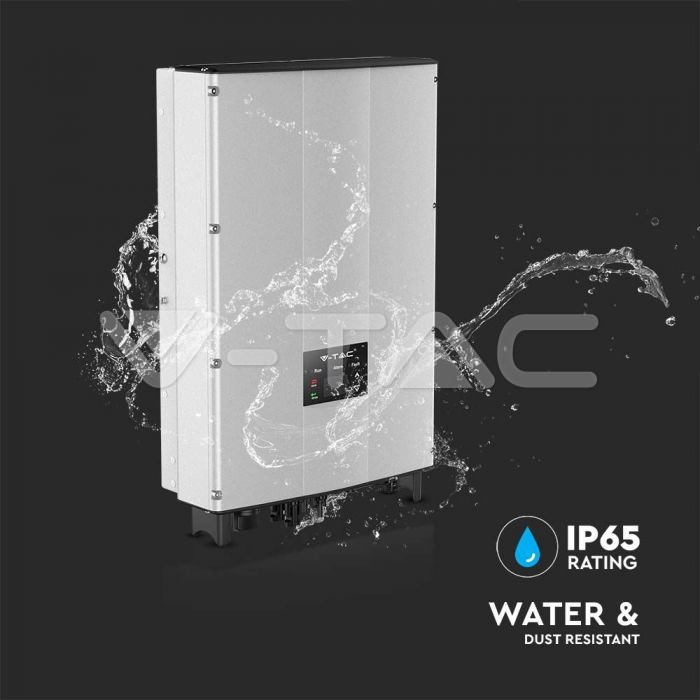

IP65
Working conditions:

-25°C to +60°C
Size:

530x360x150
Order code:

11371
Product code:

VT-6605305
Item Weight:

20kg
Brand:

Warranty:
