10KW On-Grid Solar Inverter LCD Display DC Switch Three Phase 5 yrs Warranty IP65

SKU: 11373 Categories: , ,

Additional information

Series:

Wattage:

<ul><li>Max. Input Power: 11000W;</li>
<li>Rated AC Power: 10000W;</li></ul>
Voltage:

<ul><li>Max. Input (DC): 1000V;</li>
<li>Start Voltage/Min. Operating (DC): 220/180V;</li>
<li>MPPT Range (DC): 200-800/610V;</li>
<li>Nominal output voltage (AC): 230/400V;220/380V, 3L+N+PE/3L+PE</li></ul>
Current:

<ul><li>Max. DC Current per MPPT x Quantity of MPPT: 12.5×2</li>
<li>Max. Output Current: 14A</li></ul>
Frequency:

50Hz / 60Hz
Power Factor:

≥0.99 (Rated Power)

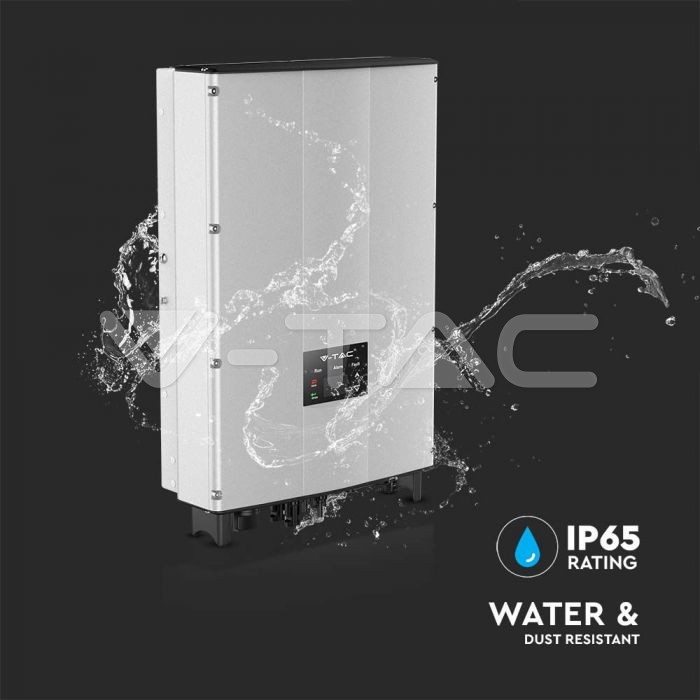

IP Rating:

IP65
Working conditions:

-25°C to +60°C

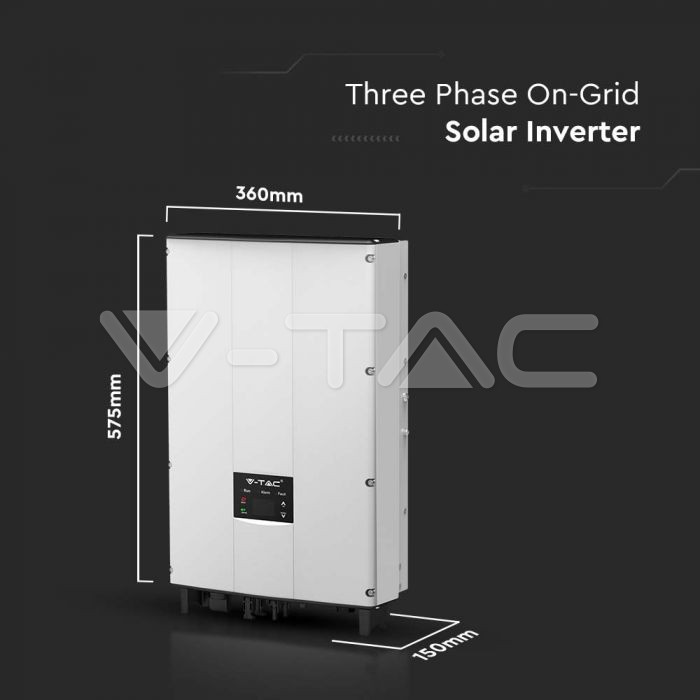

Size:

575x360x150
Order code:

11373
Product code:

VT-6610305
Item Weight:

23kg
Brand:

Warranty:
